If you’re wondering how long your battery will keep your devices running during a power outage, you’re in the right place.
The Battery Backup Runtime Calculator below helps you figure that out instantly. Just enter a few details about your battery setup—like the battery size, number of batteries, and how much power you’re using—and the tool will show you how much time you’ve got before the power runs out.

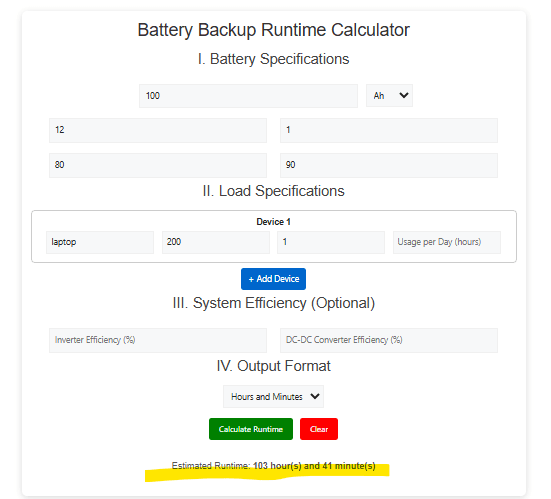

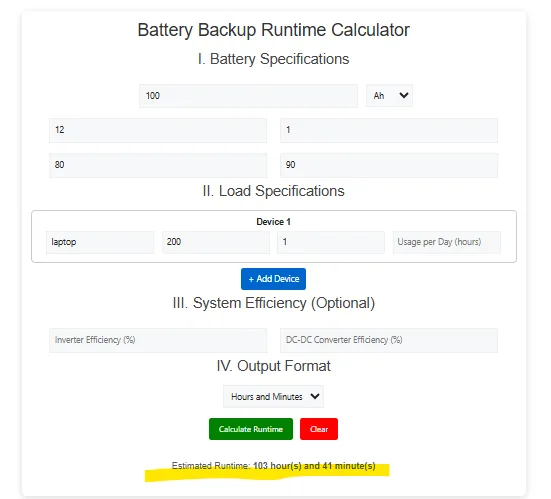

Battery Backup Runtime Calculator
I. Battery Specifications
II. Load Specifications
III. System Efficiency (Optional)
IV. Output Format
What This Calculator Does (And Why It’s Useful)
The Battery backup runtime calculator is built to answer one simple question:
How long will my battery backup system last?
Instead of manually crunching numbers, the calculator uses the following inputs to give you a reliable estimate:
- Battery capacity (in amp-hours or Ah)
- Battery voltage (in volts)
- Number of batteries
- Depth of discharge (how much of the battery you’re willing to use)
- Battery efficiency (not all stored energy gets used)
- Power load (how much electricity your devices use, in watts)
Using these, it runs a standard formula below:
Runtime (hours) = (Capacity × Voltage × Number of Batteries × Depth of Discharge × Efficiency) ÷ Power Load
Don’t worry—you don’t have to do that math. Just plug in your numbers, and the tool handles the rest.
Example: Let’s Do a Quick Test
Let’s say you have:
- A 12V, 100Ah battery
- You’re using just one battery
- You’re okay with discharging it up to 80%
- Your battery system is 90% efficient
- Your equipment uses 200 watts
Runtime = (100 × 12 × 1 × 0.8 × 0.9) ÷ 200 = 4.32 hours
So in this example, you’d have around 4.3 hours of backup power before the battery needs a recharge.
Try it with your own numbers using the calculator above.
How to Get the Most from Your Battery
Once you’ve got your estimated runtime, here are a few tips to make your battery last even longer:
- Unplug anything you don’t need during an outage — every watt counts.
- Add more batteries if you need more runtime.
- Improve your system’s efficiency — better inverters and wiring help.
- Stick to safe discharge levels — draining batteries too far shortens their life.
If your runtime feels too short, try tweaking these factors to see how it changes.
Also see: PC Bottleneck Calculator
Frequently Asked Questions (FAQs)
1. What does a battery backup runtime calculator do?
A battery backup runtime calculator helps you estimate how long your backup battery system—like a UPS (Uninterruptible Power Supply)—can keep your devices running during a power outage. It takes into account your power usage and battery specs to give you a reliable runtime estimate.
2. Why should I use a battery runtime calculator?
Using a calculator helps you plan ahead. It shows whether your current battery setup will last long enough during an outage to shut down equipment safely, keep important devices online, or get through short power interruptions without stress.
3. What information do I need to get an accurate result?
You’ll need:
- The battery’s voltage (V)
- Battery capacity (Ah)
- Number of batteries
- Desired depth of discharge (usually a percentage)
- Efficiency rating (UPS or inverter)
- The total power draw (in watts or VA) of your connected equipment
4. How do I figure out how much power my devices use?
Look for a label on the device or power supply that lists its wattage or current (in amps). If you only see amps, just multiply by the voltage. For example, 2A × 120V = 240 watts.
5. What’s the difference between Watts and Volt-Amps (VA)?
Watts measure real power used by a device. VA measures apparent power, which includes both real and reactive power. Because some devices like computers have reactive components, the VA number is usually a bit higher than watts.
6. What is “load” in battery backup terms?
“Load” is the total power your devices use while connected to the battery system. The higher the load, the faster your battery will drain.
7. What if I’m running more than one device?
Add up the power consumption of all devices you want on backup. That total becomes your load input for the calculator.
8. What is Power Factor and why does it matter?
Power Factor shows how efficiently power is used. It’s the ratio between watts and VA. A lower power factor means less efficient power usage, which affects how long your battery will last. Some calculators use this to give more precise results.
9. Can I trust the calculator’s runtime result?
The calculator gives a solid estimate, but actual results can vary. Factors like battery age, ambient temperature, sudden changes in device load, and UPS efficiency can impact performance.
10. Why does my UPS’s listed runtime differ from what the calculator says?
Manufacturers usually rate runtimes under light or ideal loads. The calculator lets you input your real-world setup, so your result might be more accurate for your situation.
11. How do I convert Amp-hours (Ah) to watts or VA?
First, multiply Amp-hours by the battery voltage to get watt-hours or VAh. For example, a 100Ah battery at 12V gives you 1,200Wh. Divide that by your load (in watts or VA) to estimate runtime.
12. What does “depth of discharge” mean?
It’s the percentage of the battery’s total capacity that you plan to use before recharging. Most systems use 80% to avoid damaging the battery or shortening its life.
13. Why should I consider UPS efficiency in my calculation?
Not all the power stored in a battery reaches your devices. UPS efficiency, often between 85% and 95%, reflects power lost during conversion. Factoring this in gives a more realistic runtime.
14. What happens if the runtime seems too short?
You can:
- Lower your total load by unplugging non-essential devices
- Use more or higher-capacity batteries
- Choose a UPS that supports external battery modules
15. Should I size my battery exactly for my needs?
It’s smart to build in some cushion. Going for a slightly larger capacity helps you prepare for unexpected surges or future equipment you might want to add.
